12mm CNC Router Linear Bearing Slide unit/Truck
	Part Number: kit990 Our Low Price: $24.95 Shipping Weight: 0.5 pounds
	Quantity:

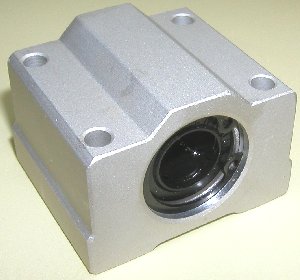

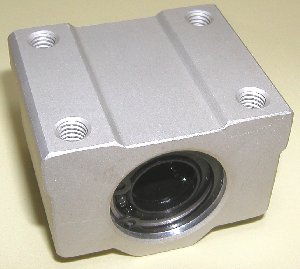

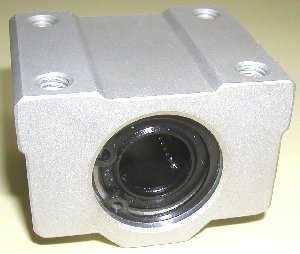

Aluminium Pillow Block Slide unit with pre-installed 12mm ID Bearing To be used with 12 mm Shafts

Click on Picture to view

Unit Designation Main dinension Mounting dimension Slide bush Weight (kgt/m) h E W J F G B C K S1 S2 L type Basic load rating Dyn. CN Stat. CoN Kit990 15 21 42 36 28 24 30.5 26 5.75 M5 4.3 12 LM12UU 510 784 102

Ball Bearings

Ball Bearings main function is to minimize the friction caused by any relative movement of two or more objects, in order to reach the maximum efficiency of energy usage, we aim to minimize the "converted to heat" energy by using Ball Bearings.
A great variety of Ball Bearings types and Ball Bearings designs are known, the manifolds of the ball bearings is justified by their various purpose of the ball bearings needed application, each type of ball bearings has a certain characteristic technical properties, rolling ball bearings have the following advantages compared with the plain bearings:

• Low starting moment.
• Low friction at all speeds.
• Low energy consumption.
• High reliability.
• Small width.
• Low consumption of lubricant.
• Long relubrication intervals.
• Easy to mount and dismount.
• Standardized dimensions.
