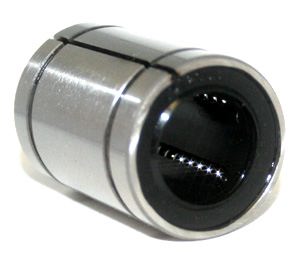

25mm Linear Motion Adjustable Ball Bearing/Bushing
	Part Number: Kit7633 Our Low Price: $14.95 Shipping Weight: 0.8 pounds
	Quantity:

Linear Ball Bushings Item # LME25UUAJ Works with 25mm Shafts 25x40x58 mm

LME25UUAJ adjustable Linear Motion Ball Bushing works with 25mm shafts, this is an adjustable sealed linear ball bushing, with the inner diameter of 25mm, outer Diameter of 40mm, and a length of 58mm, the LME25UUAJ can be used in many CNC router applications, like CNC wood router, plasma and any application that requires smooth linear motion and positioning. Item: Double Sealed 25mm Linear Ball bushing Type: Adjustable ball bushing Closures: Double Sealed Inner Diameter (shaft): 25mm Outer Diameter: 40mm Length: 58mm Most common applications: CNC routers Max dynamic load: 264 lbf Max static load: 507 lbf Equals: LAG25x40x58.2RS, KBS2558PP and 0612-025-10

Ball Bearings

Ball Bearings main function is to minimize the friction caused by any relative movement of two or more objects, in order to reach the maximum efficiency of energy usage, we aim to minimize the "converted to heat" energy by using Ball Bearings.
A great variety of Ball Bearings types and Ball Bearings designs are known, the manifolds of the ball bearings is justified by their various purpose of the ball bearings needed application, each type of ball bearings has a certain characteristic technical properties, rolling ball bearings have the following advantages compared with the plain bearings:

• Low starting moment.
• Low friction at all speeds.
• Low energy consumption.
• High reliability.
• Small width.
• Low consumption of lubricant.
• Long relubrication intervals.
• Easy to mount and dismount.
• Standardized dimensions.
