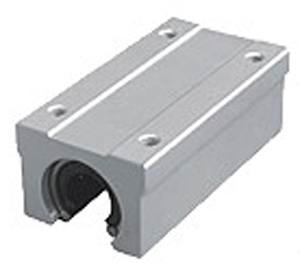

40mm Linear Bearing Twin Block Slide unit Open
	Part Number: Kit8304 Our Low Price: $199 Shipping Weight: 5.6 pounds
	Quantity:

Double Size Aluminium Pillow Block Open Slide unit with 2 pre-installed 40mm Ball bushing Can be used with 40mm Shafts

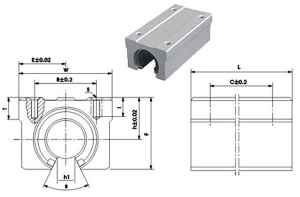

SHAFT DIAMETER	Main Dimensions (mm)								MOUNTING DIMENSIONS				WEIGHT(kg)
	h	e	W	L	F	T	h1	Ø	B	C	S	I
40	42	45	90	175	72	20	19	80	65	140	M10	20	2.48

Ball Bearings

Ball Bearings main function is to minimize the friction caused by any relative movement of two or more objects, in order to reach the maximum efficiency of energy usage, we aim to minimize the "converted to heat" energy by using Ball Bearings.
A great variety of Ball Bearings types and Ball Bearings designs are known, the manifolds of the ball bearings is justified by their various purpose of the ball bearings needed application, each type of ball bearings has a certain characteristic technical properties, rolling ball bearings have the following advantages compared with the plain bearings:

• Low starting moment.
• Low friction at all speeds.
• Low energy consumption.
• High reliability.
• Small width.
• Low consumption of lubricant.
• Long relubrication intervals.
• Easy to mount and dismount.
• Standardized dimensions.
