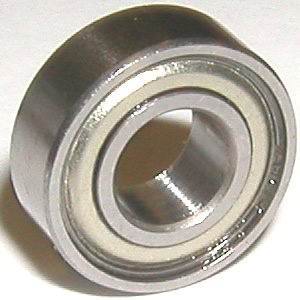

6203ZZ Bearing 17x40x12 Si3N4 Ceramic:Stainless:Shielded:Nylon:ABEC-7
	Part Number: Kit8171 Our Low Price: $58 Shipping Weight: 0.17 pounds
	Quantity:

S6203ZZ Ball Bearing ABEC-7 Quality with Si3N4 Ceramic Balls (Silicon Nitride) 17x40x12 mm Shielded Bearings S6203ZZ

S6203ZZ Bearing, categorized as thick section, Double Metal Shields, radial, deep groove ball bearings, S6203ZZ bearings are made of Stainless Steel with Ceramic Balls (Si3N4) and Nylon Cage, S6203ZZ bearing are closed with 2 Metal Shields, one Shield from each side to protect the bearing from dust or any possible contamination, S6203ZZ bearings are sealed and self lubricated, the S6203ZZ inner diameter is 17mm, the S6203ZZ outer diameter is 40mm and the S6203ZZ width is 12mm, the quality is set to EMQ (ABEC-7 quality) to ensure high speeds up to 20,000 revolutions per minute (RPM), S6203ZZ bearings are lubricated with grease. Dimensions: 17*40*12 mm/Metric ID (inner diameter)/Bore=17mm OD (outer diameter)=40mm Width/Height/thickness=12mm Equal: 6203-2RS1 &6203-2RZ Name: S6203ZZ ball bearing Item: Double Metal Shields Ball Bearings S6203ZZ Size: 17mm x 40mm x 12mm Ball Bearings Inner Diameter (ID): 17mm Outer Diameter (OD): 40mm Width/Height/Bridth (W/H/B): 12mm S6203ZZ Quality: ABEC-7 quality Type: Deep groove radial ball bearings S6203ZZ Material: Stainless Steel S6203ZZ Cage: Nylon Cage Balls: Ceramic Si3N4 S6203ZZ Closures: Double Metal Shields Limiting Speed: 20,000 RPM S6203ZZ Lubrication: Self Lubricated (Grease SRL) Bearing Quantity: One Bearing S6203ZZ Radial Clearance: C0

VXB Category: Hybrid ceramic bearings

Ball Bearings

Ball Bearings main function is to minimize the friction caused by any relative movement of two or more objects, in order to reach the maximum efficiency of energy usage, we aim to minimize the "converted to heat" energy by using Ball Bearings.
A great variety of Ball Bearings types and Ball Bearings designs are known, the manifolds of the ball bearings is justified by their various purpose of the ball bearings needed application, each type of ball bearings has a certain characteristic technical properties, rolling ball bearings have the following advantages compared with the plain bearings:

• Low starting moment.
• Low friction at all speeds.
• Low energy consumption.
• High reliability.
• Small width.
• Low consumption of lubricant.
• Long relubrication intervals.
• Easy to mount and dismount.
• Standardized dimensions.
