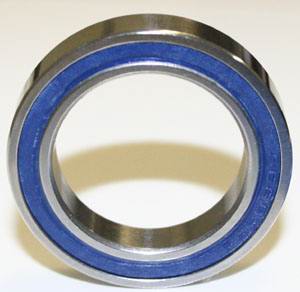

6804-2RS Bearing 20x32x7 Si3N4 Ceramic:Stainless:Sealed:ABEC-7
	Part Number: Kit7659 Our Low Price: $43 Shipping Weight: 0.08 pounds
	Quantity:

S6804-2RS Ball Bearing ABEC-7 Quality with Si3N4 Ceramic Balls (Silicon Nitride) 20x32x7 mm Sealed Bearings S6804-2RS

S6804-2RS Bearing, categorized as thick section, double sealed, radial, deep groove ball bearings, S6804-2RS bearings are made of Stainless Steel with Ceramic Balls (Si3N4) and Stainless steel cage, S6804-2RS bearing are closed with rubber seals to protect the bearing from dust or any possible contamination, S6804-2RS bearings are sealed and self lubricated, the S6804-2RS inner diameter is 20mm, the S6804-2RS outer diameter is 32mm and the S6804-2RS width is 7mm, the quality is set to EMQ (ABEC-7 quality) to ensure high speeds up to 25,200 revolutions per minute (RPM), S6804-2RS bearings are lubricated with grease. Name: S6804-2RS ball bearing Item: Double Sealed Ball Bearings S6804-2RS Size: 20mm x 32mm x 7mm Ball Bearings Inner Diameter (ID): 20mm Outer Diameter (OD): 32mm Width/Height/Bridth (W/H/B): 7mm Dimensions: 20*32*7 mm/Metric ID (inner diameter)/Bore=20mm OD (outer diameter)=32mm Width/Height/thickness=7mm Equal: 6804-2RS1 & 6804-2RZ S6804-2RS Quality: ABEC-7 quality Type: Deep groove radial ball bearings S6804-2RS Material: Stainless Steel S6804-2RS Cage: Stainless Steel Balls: Ceramic Si3N4 S6804-2RS Closures: Double sealed with rubber seals RS/RS1/2RS1 Limiting Speed: 25,200 RPM S6804-2RS Lubrication: Self Lubricated (Grease SRL) Bearing Quantity: One Bearing S6804-2RS Radial Clearance: C0 Equivalents: S61804-2RS1 P4 and S61804RS1 Bearings

VXB Category: Hybrid ceramic bearings

Ball Bearings

Ball Bearings main function is to minimize the friction caused by any relative movement of two or more objects, in order to reach the maximum efficiency of energy usage, we aim to minimize the "converted to heat" energy by using Ball Bearings.
A great variety of Ball Bearings types and Ball Bearings designs are known, the manifolds of the ball bearings is justified by their various purpose of the ball bearings needed application, each type of ball bearings has a certain characteristic technical properties, rolling ball bearings have the following advantages compared with the plain bearings:

• Low starting moment.
• Low friction at all speeds.
• Low energy consumption.
• High reliability.
• Small width.
• Low consumption of lubricant.
• Long relubrication intervals.
• Easy to mount and dismount.
• Standardized dimensions.
