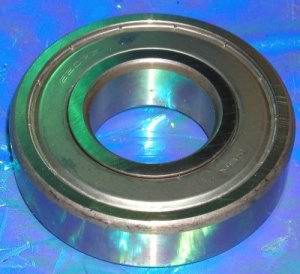

696ZZ Bearing 6x15x5 Shielded
|
696ZZ Bearing 6x15x5 Shielded
|
|
|
Part Number:
696ZZ10-1
Our Low Price:
$3.95
Shipping Weight: 0.03 pounds
|
|
|
696ZZ Ball Bearings for many applications, this is a popular size that could be used in many RC Cars and Trucks, or any application that uses this size 6mm x 15mm x 5mm. Bearings are made of Chrome Steel and can rotate up to 48000 rpm, each bearing has 2 metal shields to protect the bearing from dust or any possible contamination, also bearings are pre-lubricated with grease.
- Item: Double Shielded Ball Bearings
- Size: 6mm x 15mm x 5mm
- Dimensions: 6*15*5 mm/Metric
- ID (inner diameter)/Bore=6mm
- OD (outer diameter)=15mm
- Width/Height/thickness=5mm
- Equal: 696-2Z & 696-ZZ
- Type: Chrome Steel - Deep groove ball bearings
- Closures: 2 Metal Shields
- Lubrication: Self Lubricated (Grease)
- Quantity: One
- KOYO: 696ZZ
- NSK: 696ZZ
- NMB: R-1560ZZ
- FITS: TIEMPO (1:8) GAS (SEALED)
|
|
Ball Bearings
Ball Bearings main function is to minimize the friction
caused by any relative movement of two or more objects, in order to
reach the maximum efficiency of energy usage, we aim to minimize the
"converted to heat" energy by using Ball Bearings. A great variety of
Ball Bearings types and Ball Bearings designs are
known, the manifolds of the ball bearings is justified by their various
purpose of the ball bearings needed application, each type of ball bearings has a certain
characteristic technical properties, rolling ball bearings have the following
advantages compared with the plain bearings:
- Low starting moment.
- Low friction at all speeds.
- Low energy consumption.
- High reliability.
- Small width.
- Low consumption of lubricant.
- Long relubrication intervals.
- Easy to mount and dismount.
- Standardized dimensions.
|
|
