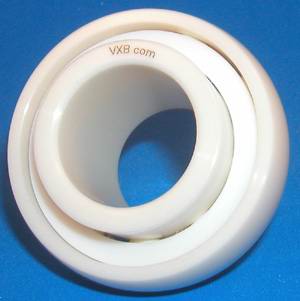

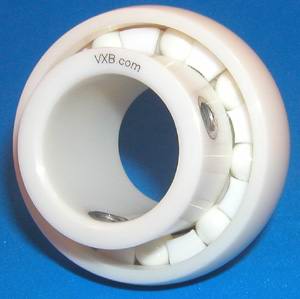

UC204 20mm Full Ceramic Mounted Bearing ZrO2
	Part Number: Kit7649 Our Low Price: $390 Shipping Weight: 0.35 pounds
	Quantity:

Full Ceramic Mounted Bearings UC204 20mm x 47mm x 16mm (inner race width=31mm)

Full ceramic 20mm mounted Bearing, UC204, the inner diameter is 20mm, outer diameter is 47mm and the width of the inner race is 31mm, the width of the outer race=16mm, this is a popular size that could be used in many applications, Bearings are made of Ceramic. Item: UC204 Matrial: ZrO2 (Zirconium oxide) Ceramic Type: Mounted Bearing Balls: ZrO2 Ceramic Cage: PTFE Bearing Size: 20mm x 47mm x 16mm/31mm Highest Temperature: 356 °F (degrees fahrenheit) = 180 °C (degrees Celsius) Quantity: One ball bearing

VXB Category: Full ceramic bearings

Ball Bearings

Ball Bearings main function is to minimize the friction caused by any relative movement of two or more objects, in order to reach the maximum efficiency of energy usage, we aim to minimize the "converted to heat" energy by using Ball Bearings.
A great variety of Ball Bearings types and Ball Bearings designs are known, the manifolds of the ball bearings is justified by their various purpose of the ball bearings needed application, each type of ball bearings has a certain characteristic technical properties, rolling ball bearings have the following advantages compared with the plain bearings:

• Low starting moment.
• Low friction at all speeds.
• Low energy consumption.
• High reliability.
• Small width.
• Low consumption of lubricant.
• Long relubrication intervals.
• Easy to mount and dismount.
• Standardized dimensions.
